System 2309 : Anti-Static Epoxy Flooring

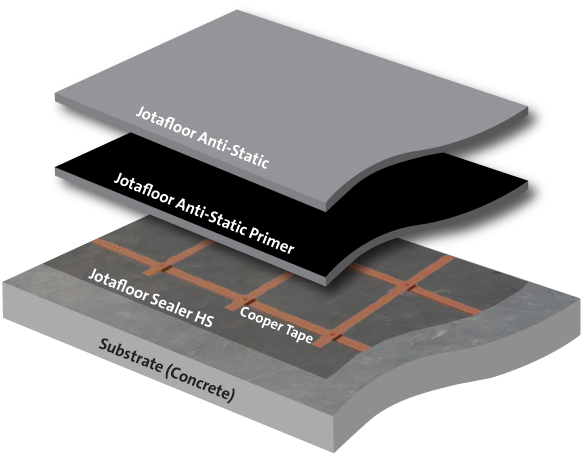

System Buildup:

Anti-Static Epoxy Flooring

System Description:

This industrial-grade flooring system is engineered to deliver a seamless, durable, and hygienic finish with advanced electrostatic discharge protection. It starts with a two-component, amine-cured, high-solids epoxy primer that deeply penetrates concrete substrates to ensure superior adhesion and maximum resistance against atmospheric moisture. Over the cured primer, a self-adhesive copper tape grid is installed and connected directly to the building’s grounding points for rapid charge dissipation. This grid is encapsulated by a specialized conductive intermediate coat that ensures continuous horizontal conductivity across the entire floor. The system is completed with a self-smoothing epoxy coating that provides a high-gloss, easily cleanable surface with certified mechanical strengths, in strict compliance with ESD STM 7.1 and IEC 61340-5-1 standards. It is ideal for clean rooms, electronic factories, hospitals, and pharmaceutical plants.

System Key Features:

Recommended System:

Product use Product name Coats/Thickness
Primer Jotafloor Sealer HS 100 µm
Tape -
Conductive Primer Jotafloor Anti Static Primer 50 µm
Finish Jotafloor Anti Static 1500-2000 µm
