System 2270 : Interior high build Zinc phosphate epoxy for C5 Very High Durability ISO 12944

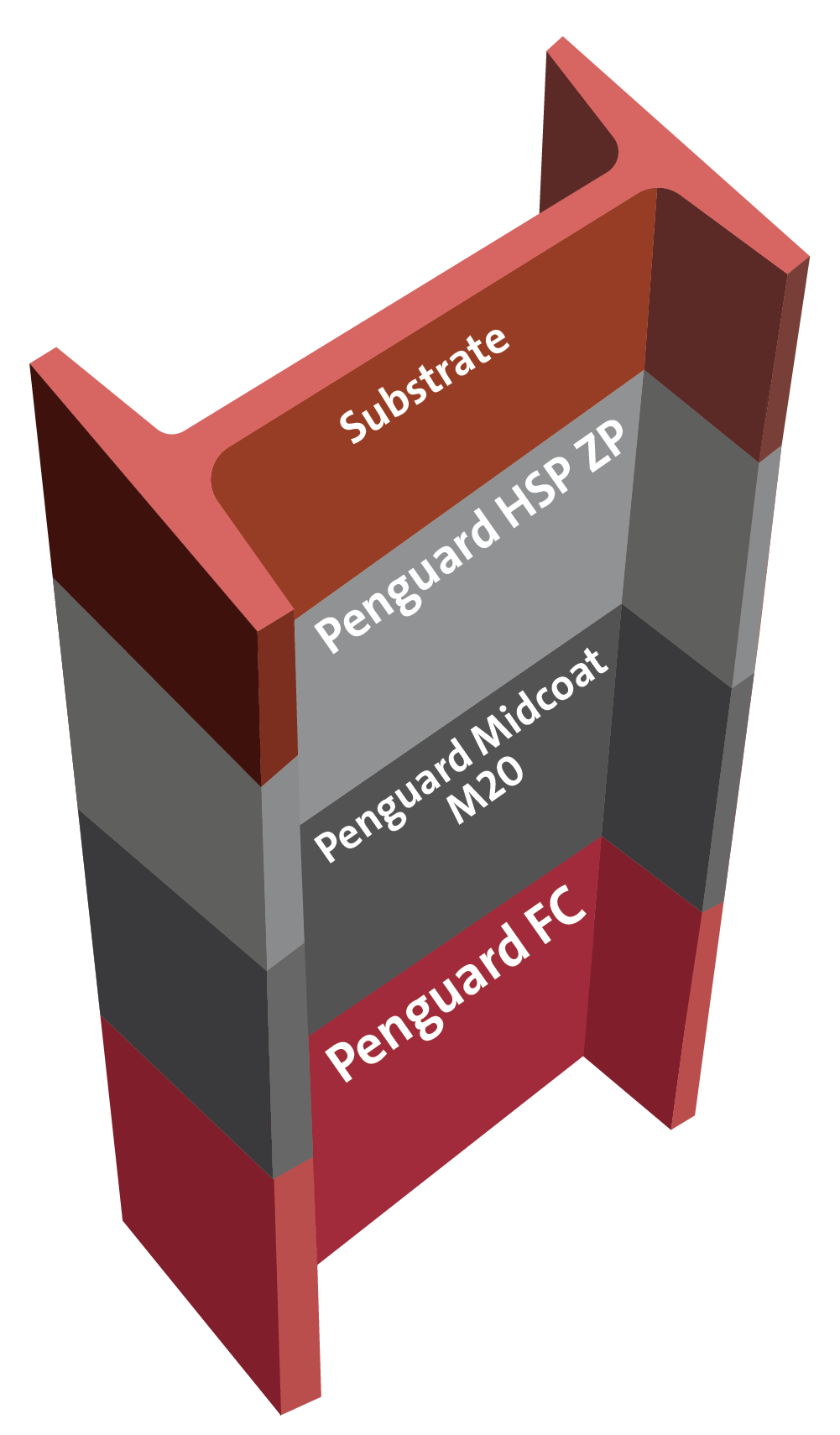

System Buildup:

Interior high build Zinc phosphate epoxy for C5 Very High Durability ISO 12944

System Description:

This high-build interior zinc phosphate epoxy system delivers exceptional corrosion protection for carbon steel in C5 environments. It combines an epoxy primer with zinc phosphate for rust inhibition, a MIO-reinforced epoxy intermediate layer to enhance long-term durability, and a high-corrosion-resistant epoxy topcoat. Fully compliant with ISO 12944 C5 standards, the system provides a service life exceeding 25 years on properly prepared steel surfaces. Ideal for structural steel, tanks, and piping, it is recommended for demanding applications including power plants, airports, industrial buildings, refineries, and mining equipment.

Recommended System:

Product use Product name Coats/Thickness
Primer (Optional) Penguard HSP ZP 180µm
Mid coat (Optional) Penguard FC 100µm
Interior Topcoat Penguard FC 80µm
